Monday, April 18, 2022

Promotional Leaflet by Ernst Collin for Dornemann & Co.

Back in September 2021 I acquired a binding containing two small publications by Paul Kersten and 5 advertising leaflets for type holders and brass type made by Dornemann & Co. in Magdeburg. Two were written by Paul Kersten, two unattributed, and one is by Ernst Collin. Collin was  no stranger to commercial work, also having written articles for Wilhelm Leo that were included in a calendar that they published annually.

P. Kersten. Geometrisches Zeichnen u Handvergoldung.
The title is hand letter on the cloth.

Works included in the binding are:

  • Kersten, Paul. Geometrisches Zeichnen für Buchbinder. Verlag des Allgemeinen Anzeigers für Buchbindereien, Stuttgart, 1928. (Geometric Diagramming for Bookbinders)
    • This text came out in a new edition in 1935 with one section rewritten to reflect the new power structure - how to properly represent the swastika. Perhaps a post for another day.
  • Kersten, Paul. Lehrbuch der Handvergoldung: Eine Anleitung zum Selbsterlernen. Verlag von Wilhelm Knapp, Halle a. Saale, 1930. (Manual for Finishing: Instructions for learning on ones own)

Werbeschriften (Advertising leaflets):

  • Kersten, Paul. Etwas über Schriftkästen. Dornemann & Co., Magdeburg, [s.d.] (About Typeholders)
  • Kersten, Paul. Messing- oder Blei-Schriften. Werbeschrift Nr. 4. Dornemann & Co., Magdeburg, [s.d.] (Brass or Lead Type)
  • [s.n.]. Schriftkästen. Dornemann & Co., Magdeburg, 1928.
  • [s.n.]. Messingschrift-Giesserei Dornemann & Co., Magdeburg. Werbeschrift Nr. 8, Dornemann & Co., Magdeburg, [s.d.]. (Brass Type Foundery Dornemann & Co., Magdeburg - about the foundery) Written in German, French, English, Spanish. (Boîtes, Typeholders, Cajetínes Composteurs, Lettering Pallets)
  • Collin, Ernst. Messingschriften für den Handvergolder. Werbeschrift Nr. 3, Dornemann & Co., Magdeburg, [s.d.]. (Brass Type for Gold Finishers)

While the German National Library has others of the series of Werbeschriften in its catalog, these do not appear...

Here the English page of Messingschrift-Giesserei Dornemann & Co. These sentiments are also reflected in Collin's leaflet.


Brass Type for Hand=Finishing!

We are the only firm in Germany able to cast Brass Type for hand=tooling from instruments and matrices. This is the only process giving _bsolute guarantee for producing the highest grade type. Our Founts are famous for their clear face and deep cut even in the smallest sizes, the alignment of the letters is perfectly true and the height absolutely correct. The composition of metal used by us proves to have greatest resistance power and with care our type is practically indestructible, whilst owing to mass production our prices can be considered reasonable taking info consideration the high finish.

Our brass type is known all over the globe where book finishers pride themselves in turning out good bindings and letterings, and both at home and abroad the superior quality of our productions are universally acknowledged. One of fhe best known craftsmen in Paris considers

"The name of Dornemann is synonymous with perfection!"

We are constantly endeavouring to keep our output up to the highest standard of efficiency as regards artistic and modern perfection, and our type will be found most durable. All goldfinishers requiring type, ornaments, and gilding tools for handlettering should apply fo us for samples and catalogues.


[Edit: To learn how these Dornemann type faces were cast, read "Sandcasting brass types for bookbinders" on Dan Reynold's Type Off  blog.

Below the German text of Collin's pamphlet.





When I returned from my apprenticeship in Germany, I ordered a basic set of pallets and gouges for finishing from via the West German distributor for Dornemann, still in Magdeburg and in the DDR.


Dornemann also produced a set of pallets and gouges designed by Ignatz Wiemeler, one of the finest design binders, ever.

In 1987, pre-reunification the pallets were 229  and the gouges 285 Deutsch Marks. In 1991 I ordered the other set of gouges and the price had increased to 557 Deutsch Marks. For this Wessi, it would have been smarter to buy all in 1987, but who would have known the wall would come down 2 years later. All in all, good that it came down.

Looking east and at the building for the State Publisher of the DDR.
This picture and the next were taken by me in November 1984.
More from that visit and the one in December 1989 here.

Looking over the wall. The image was taken with a telephoto.
Between the Wall (Ebertstrasse) and the Staatsverlag (Wilhelmstrasse)
was once Hitlers bunker... Now the "death strip" has been filled in with buildings,
but just to the left of this picture is the Memorial to the Murdered Jews of Europe.

History is everywhere, and Ernst Collin and his family were certainly a part of it on many levels.


Saturday, July 17, 2021

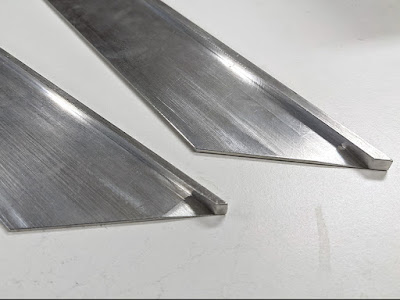

Tool Talk 3: Edge Trimming Rule (Kantenlineal)

Edge trimming rules have been mentioned the German bookbinding literature at least since Greve in his Hand- und Lehrbuch der Buchbindekunst (1823) and L. Brade's illustrirtes Buchbinderbuch (1868 with various editions). These rules are used for cutting the boards down to their final size after they have been attached to the text block, either on the guard with spine piece or if laced on. The rules illustrated below have raised lips that are 3 and 5 mm wide. These are made from machined aluminum and were ordered from Schmedt. The ones I used as an apprentice in Germany were made of steel. In both cases, they were machined so that the ends adjacent to the lips were beveled.



To use, the rule is slipped under the outermost leaf with the board underneath. The lip is pressed tight to the edge of the book, and the excess is then cut off with a sharp blade. The beauty of these rules is that even if the book is out of square, the book will always have even squares.


I most commonly used the 3 mm rule, with the 5 mm rule being used for the ledger books like springback bindings that are beefier. I would love 2 mm and 4 mm as they align better with the board thickness I use. The way I learned, board thickness = size of squares.

Below a video of the tool in use.


I find these rules incredibly useful, especially for in-boards bindings.

Saturday, July 10, 2021

Tool Talk 2 - Kaschiereisen (Frottoir/Grattoir)

The Kaschiereisen as this tool is known in German is made to shape and consolidate the spine of a book in backing where it was used as an alternative (or augmentation) to the hammer offering a high degree of control. Jeff Peachey has written about these tools several times, also sharing his growing collection. Most recently, Ulrich Widman "reintroduces" the tool to German bookbinding audiences with an upcoming article for the Meister der Einbandkunst Rundbrief (2021).

In the German bookbinding literature the tool has several spellings,  Cachiereisen/ Cachier-Eisen /Kaschiereisen/Kaschier-Eisen. The interchangeable "c" and "k" are very common in German, the "c" being connected to the French roots of a word, but also as an affectation from when French was considered superior. Cashier, comes from the French "cahier" meaning signature/quire, or in our context a tool for working/shaping/folding the signatures. Eisen = iron, the material the tool was often made of.

In its history, the Kaschiereisen was sometimes two tools, in French the grattoir had a toothy end that grabbed the folds and provided the friction to push the signatures over to form the shoulder. The frottoir was smooth and used to smooth the folds and finish the shaping of the spine and shoulder. It also served to scrape off excess adhesive and ensure that it penetrated into the space between signatures.

At left the Rücken-/ Cashierholz and at right the Cashiereisen
from plate 2 of Greve's Die Buchbindekunst, 1823.
The use of the tools is described on pages 214-15.

The use of the tool is also described on page 35 of Schäfer's Handbuch der Buchbinderkunst (1845). Schäfer refers to it as a Kratzeisen (scratch iron), and Reiber (burnisher) made of iron, these being distinct tools like the grattoir and frottoir. He also and issues warnings about the improper use of the tool and the damage it can cause.

Paul Adam describes using a Cachiereisen to finish the backing work of the hammer. The shape at both ends is smooth and curved like a frottoir.

From Paul Adam's Der Bucheinband seine Technik
und seine Geschichte
, 1890 (pg 45).

In his Practical Bookbinding (1903), a translation of Die Praktischen Arbeiten des Buchbinders (1898), Adams writes that "the use of a tooth Cachier iron is strictly forbidden, but the round side of this tool may be used instead of a hammer" (pg. 59).

Use of the tool seems to have declined, but it continued to receive mentions in manuals. The best description of the tool appeared in Der Buchbinderlehrling (1937) as a two part article. The first part featured a picture of the tool with the question of "who knows what this is..." The Buchbinderlehrling was a magazine for bookbinding apprentices, and quizzes were a regular feature

The quiz in Der Buchbinderlehrling.
1. Who knows this tools, and what is it called?
2. For what task is it used?
3. How is it used?
4. Are there images showing how it is used

The tool in use from Der Buchbinderlehrling.

The bulk of the article featured 7 responses from apprentices, Meister, and others. The responses varied, with some going into detail and others being cautionary. They also referenced depictions in the literature, but the tool was unfamiliar to most.

Below images of these tools that I use.

It was made by Jeff Peachey, called a "backing tool",
and featured in his first catalog (link to 2nd catalog).
I love using this one on smaller, more delicate books.

My first Kaschiereisen, acquired early
in my career from a German binder

Jeff Peachey's latest, made of stainless steel.
It is a dream to use.
Order yours here!

Here some images and videos of the tool in use.

Backing/shaping the spine.


Smoothing the spine.

Monday, July 5, 2021

Tool Talk 1 - Fray Shield (Aufschabeblech)

 A looooooong time ago, not to long after I started this blog, I introduced the Aufschabebelch, a simple tool that one could purchase or make one's self. Below an image of it, also in use from 1806.

From plate II of Hendrik de Haas' De Boekbinder, 1806.
Fig 8. Het opvlas planje.
Fig 9. Het opvlasten der banden.
(PDF pg 174-76)

They were usually made of tin and the one I am most familiar with was shaped like in the image below. Why that shape and hole configuration? It's not explained, but is pretty much identical to the one I used as an apprentice in the mid 1980s.


(Halle a.d. Saale, 1909), plate 1.
Attaching the boards in the German Franzband tradition.
From from Wiese's Werkzeichnen für Buchbinder..., (Stuttgart, 1937).

Recently, I was invited to give a workshop on what I call the Ur-Bradel, the German Pappband structure that over the course of the centuries morphed into various flavors, often national, and of which all seem to have slightly different understandings. I won't get into those here, but in that structure, if the book was sewn on recessed cords, those cords were frayed out, paste was applied (often hide glue was applied to the guard (Ansetzfalz)), and then they were fanned out smoothly. The benefit was that this process resulted in sewing supports that were almost invisible under the endpapers when the book was done. That was the theory, because the extent to which the cords were frayed and fanned out varied by skill or time pressure.

The image below is from a cutaway model I making of one of these Ur-Bradels, ca 1800 and shows the cords frayed out and put down on the guard. The next step would be to attach the spine piece to the guard, then the boards, but I digress.

Fritz Otto did ok... Not atypical.

In the past I would have just teased the fibers of the cord apart with a needle then run them over a not to sharp paper/standard bookbinders' knife blade. Then I thought, perhaps Jeff Peachey could make me one. I sent him the image above and after a good bit of back and forth he sent me two prototypes to test out.

Fritz Otto showing off the two fray shield prototypes.
The shape is different from the one in German manuals... Will it matter?

Another view. The dimensions of the bottom one were what I asked for,
with a heavier steel used. The top, Jeff's reinterpretation.

In the end, I really liked Jeff's reinterpretation more.
You can even order your own from him now!

After teasing the fibers of the cord apart, they are slipped into
the notch and a bookbinders' knife are used to finish and make
them silky smooth.

Below a video in which I try out both to see which I liked better. There is no sound or narration.


As a surprise, Jeff even made one for Fritz Otto. He loved trying it out. Worked great, and he's glad to have it in his tool box.

Holding his "right-sized" Aufschabeblech.

Fraying out the cords...

Brushing the hide glue onto the guard...

Fanning out the frayed out cords on the guard.


Sunday, January 24, 2021

Indexing Shears

Lots of books have need for indexing tabs, books such as directories, address books, and ledgers. The marks for the index are placed along the fore-edge of the book. These can be half-round cuts called "thumb indexes" like those found on many dictionaries, or they can be strips of decreasing length that are cut out of the fore-edge. It is the latter I will show here.

Mary Sullivan of Crowing Hens Bindery in Nashville, TN reached out to me about this topic and provided the beautiful images of her German-style indexing shears and an image of the one described in Wm Atkins Account Book Binding - A Classic Article on Folding, Sewing, Equipment,..., pg 33. Note: This is text is available as Print on Demand and is excerpted from The Art and Practice of Printing by John Mason, edited by Wm. Atkins. Mary, by the way makes beautiful springback bindings. Check them out on her website. They open flat and are great for writing in.

Mary Sullivan's German Indexing Shears (top).
Hickock Index Shears from Atkins, pg 33 (below).

Here is an image of shears, including the Registerschere from the 1928 catalog (pg. 38) for Braunwarth und Lüthke in Germany.

The Registerschere is 2nd from right. The elongated shape
between the handles shows the shape of the cutout.

Both feature an adjustable gauge to set the depth of the cut. So, how would one go about using these.?

First, one would need to determine how many cuts need to be made. In most traditions there are letters that might be combined, or even left out. The indexing tabs would also need to be evenly spaced out to have a clean looking index along the foredge. So, how would one do this? Math by dividing height of textblock by number of tabs, or is there an easier way? Well, it so happens that there is, reusable even. As an aside, this idea can also be easily adapted for determining sewing stations of pretty much any number for any common book. Just lay the signature on the template so that the textblock aligns at top and bottom, then transfer marks.

Index Scale Card from Atkins, pg 32.
Note "X" at the top and the added "Mc" at the bottom.

Register-Einteilungsschema from Fritz Wiese's Werkzeichnen für
Buchbinder
, 1937. Note the combined and added indexing tabs.
We called a Registerkamm where I was an apprentice. Kamm = comb.

Paul Adams described how to cut these tabs in his Practical Bookbinding (1903) on pages 166-67.

For all such work a thumb index is generally required; each page takes one or more letters, or a specification is given, according to which the binder counts off the number of pages required for each letter—X and Y being here excluded. Nowadays, the indices are cut with index shears, which not only regulates the depth of the index but also avoids the acute angles which are so easily torn in.

Commence cutting from the back, that is, with the Z ; this, being the last letter, is not cut out. Then count off W, cut with the shears, and cut off what remains below to the bottom edge with a sharp knife, to do which a narrow thin board [or sheet of zinc] is slipped underneath. The further you proceed towards A, the longer is the strip which has to be cut out with the knife. When the excisions for the whole alphabet have been made, the letters are pasted on. These are sold ready printed, and nowadays are almost always in one piece for back and front.

The printed sheet with the alphabet is glued or gummed on the back, and, after drying, the alphabet is creased lengthwise and either cut so or punched out with a suitable tool. The single letters are damped and stuck in position.

When cutting with the shears, it is useful to cut a manageable number of pages at a time for comfort, and to keep "round" of the foredge, such as it will be. This cutting, as well as the vertical cut described by Adam above can be done before or after sewing.

Here what the index looks like. Image taken from Mary's copy of Leonard Monk's A Text Book of Stationary Binding, 1912.

The cut out indices.


Finally, some beautiful images of Mary's German shears, with the final one of them in use.

The brass "clip" at bottom holds the shears closed when not in use.

View of the shears showing the wide cut on the right.

The shears in use showing various cut depths.


Saturday, February 15, 2020

Holz-Werkzeuge für Buchbindereien (Wooden tools)

Habe vor kurzer Zeit noch einen Katalog für Buchbindereibedarf erworben. Der unten, Holz-Werkzeuge für Buchbindereien, stammt von der Firma Edmund Junghändel in Nürnberg, 1927. Drin sind allerlei Pressen, Heftladen, Vergoldekästen und sonstiges. Junghändel war u.A. Fachgeschäft für Buchbinderei-Bedarf, Grosshandlung für Buntpapiere und verkaufte auch Maschinen für die gesamte Papierindustrie.

Recently acquired another bookbinding supply catalog for my library. The one below, Holz-Werkzeuge für Buchbindereien, focuses on wooden presses and related equipment for binderies. It was issued by the firm of Edmund Junghändel in Nuremberg, 1927. Junghändel also sold other binding supplies, was a wholesaler for decorated papers, and sold machines for all paper industries.



View below or download here.



Ich konnte auch eine Rechnung der Firma erwerben für 3.5 meter schwarzes Calico. Die ist zwar nicht von 1927, sondern 1914, zeigt aber deren Gebäude an der Molkestrasse 1.

I could also acquire an invoice from the company for 33.5 meters of black calico bookcloth. The invoice is not from 1927, but rather 1914, and shows their building at Molkestrasse 1.


Anhand der Abbildung der Firma, daß auch die "Burg" links im Hintergrund zeigt, ist der Ort wo die Firma stand jetzt eine Schule, und die Molkestrasse auf der Seite ein Radweg geworden.

Based on the image on the invoice that also shows the "Burg" in the old part of the city at top left, the location of the company is now a school, and Moltkestrasse turned into a bike path alongside.



Wednesday, December 25, 2019

The Hard Life of a Pressbengel

Translation of "Der Pressbengel," from Der Buchbinderlehrling, vol, 13, nr, 11, 1940.
By Schlaghammer (beating hammer), pseudonym for Franz Weisse.
For more about Weisse, see also the bottom of his story about a bone folder.

A Pressbengel from my collection.

Once upon a time, there was Pressbengel that was very busy during the day, so busy that the Journeyman threw it into a corner with a groan from all the effort and left it there until the next morning. The Pressbengel sensed that the Journeyman felt it had become an outdated piece of bindery furniture, and that it was easier and more comfortable to use a tabletop iron press rather than the traditional hand press. Add to this that the Journeyman wanted to go to a party that night, and who knew if he would even be fit to work the next morning. The nature of his situation depressed the Pressbengel to no end, and it began to brood about its role in, and importance for the bindery.

Illustration from Adam, Lehrbücher der Buchbinderei:
Die einfachen handwerksmässigen Buchbinderarbeiten
ohne Zuhilfenahme von Maschinen
 (1924)

Didn’t the Journeymen, as well as an otherwise gentle young lady, break and glue it back together three times in their zeal to tightly back their books? Yes, they did! No one, whether apprentice or Meister gave the Pressbengel, and the pain they inflicted on it, a second thought. They all treated it pitifully, such as when the apprentices didn’t lubricate the wooden threads of the press with dry soap so that its job would be easier than on the rough, dry wood that wouldn’t allow the nut to turn. Then the louts would just bang on it with a hammer until it broke. The Meister was too cheap to buy a new one, choosing instead to just glue it back together until the next time. After flying across the shop, the Pressbengel finally had enough, and came up with a prank that he was going to play on the Journeyman.

Cover from one of the later editions of Ernst Collin's Buchbinderei für den Hausbedarf.

Early the next morning, after the Journeyman had finally collapsed into his bed after the night of debauchery and drinking, the Pressbengel came up to him and hit him, first in the gut, then the chest, and finally on the head, repeatedly. The Journeyman twisted and turned, but try as he may, he could not avoid the repeated blows to his brow. “I’ll teach you, you vile Journeyman, to abuse me! For ten years I’ve served you and the others, and it’s been 30 years since the Meister bought me. Millions of presses I’ve tightened for you! And, this is how you thank me?!? Just you wait! Payback is coming.

The Journeyman avoided the bindery for eight days on account of the horrible headache induced by his “dream.” His first glance was towards the corner that he had tossed the Pressbengel into in anger. The Pressbengel, however, did its duty in the Meister’s hands, squealing in delight at the sight of the pathetic looking Journeyman – “see there are still lots of tasks in bookbinding that handpresses are essential for! When in your hands, I, ‘Herr Pressbengel,’ help you tighten those screws. Me, ‘Herr Pressbengel to you!’ Your bindings would be junk if you didn’t have me! Hand bound books are supposed to be solid as a piece of wood, and without me they would be floppy and unsightly lumps. So, Herr Journeyman, won't you treat me better? If not, I’ll visit you again in the middle of the night, but this time along with someone who’ll beat some real sense into you, the beating hammer!"





Sunday, August 25, 2019

Bookbinding Supplies | Buchbinderei-Bedarf, 1928

Below the 1928 Braunwarth & Lüthke catalog that gives a wonderful sense of the all the expendable supplies (paper, cloth, leather), hand tools, and equipment that a bookbinder of that time would have had available to them. Schmedt in Hamburg acquired Braunwarth & Lüthke 1990[ish] to give them a branch in Munich.

While not all items are depicted, where they are they can be a great aid to understanding terminology in foreign language manuals, especially in tandem with a resource like the Multi-lingual Bookbinding/Conservation Dictionary, https://bookbindingdictionary.com .

Braunwarth & Lüthke, München,
Braunwarth & Lüthke - Preis-Liste über Materialien, Werkzeuge, Beschläge,
Apparate und Maschinen für Buchbindereien und verwandte Branchen.1928.

Scanning all 138 pages with Fritz Otto's help.
No worries, the signatures were all loosely sew and the wrapper off, so no damage.

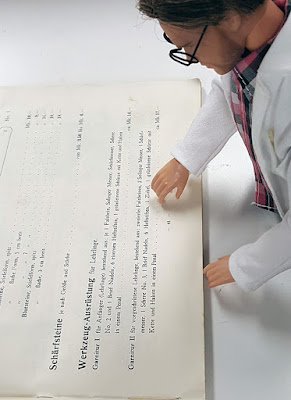

Complete tool sets for apprentices just starting out, and those more advanced.
Included were a bone folder, bookbinding knife, paring knife, scissors,
sewing needles, keys for securing raised cords in the sewing frame, a green linen apron.
The advanced included more of some of the tools and a divider.
Mk 14 and 17 respectively. (Page 42)

Everything needed to equip a small hand bindery.
Mk 1620 (Page 125)


View below or download here.
